Juki MF-3620U300, (4),Needle Feed Off The Arm
Flat Seamer,Bottom Stretch Coverstitch
Industrial Sewing Machine with MF3620 Direct
Drive DC Motor Stand,4,200 S.P.M.







Features:

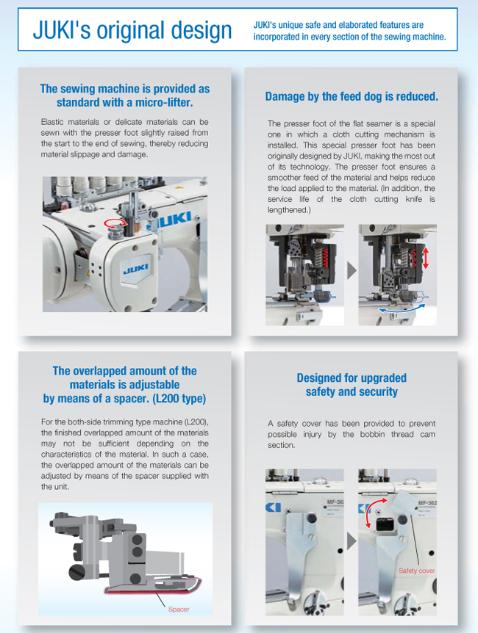

A new model with a direct-drive servomotor has been introduced as an addition to the MF
Series of JUKI sewing machines. The new machine consumes only about half the power of
the conventional models. The enhanced responsiveness (compared with the model equipped
with the clutch motor) of the MF-3620 gives the operator complete control over the material
when sewing curved sections. Safely within its new shield, the frame is equipped with
mechanisms for micro-quantity lubrication and forced oil circulation. The thread take-up
mechanism arranged on the outside of the arm prevents the entry of oil splashed and dust.
The MF-3620 is also configured with JUKI's unique oil-thrower mechanism to protect the
looper section from oil infiltration. Excess oil is speedily reclaimed via the new oil groove.

We are delighted to announce that new subclass models have been added; one model is best-
suited to the sewing of hard-to-sew materials with multi directional elasticity such as swim
wear, while another model is for the prevention of uneven feed of the tape-attached parts of
boxer briefs and running shirts to provide more consistent seam quality. In addition, the
multipurpose type subclass model which is able to perform both one-side cutting and both-
sides cutting has also been added, intended for sewing plants engaged in the sewing of
diversified sewing items.







































Specifications:

Light- to heavy weight (knit)
Max. sewing speed: 4,200 stitches/min
Stitch length: 1.6 ~ 2.5mm (standard 2.1mm)
Needle gauge: 5.2, 6.0mm
Needle: FL × 118GCS (#10S) #9S ~ #12S
Retainer needle: FLG-8 (#8) #8~#11

US Warranty: 1 year parts,90 days labor on defects in materials and workmanship.
Non-US Warranty: 30 days parts and labor.

Availability: Yes

Condition: Brand New in Boxes

Shipping: This item is a Special Order, (60)days, No Cancellation after Purchased

Returns: See Our Store Policy

Call for Price !
